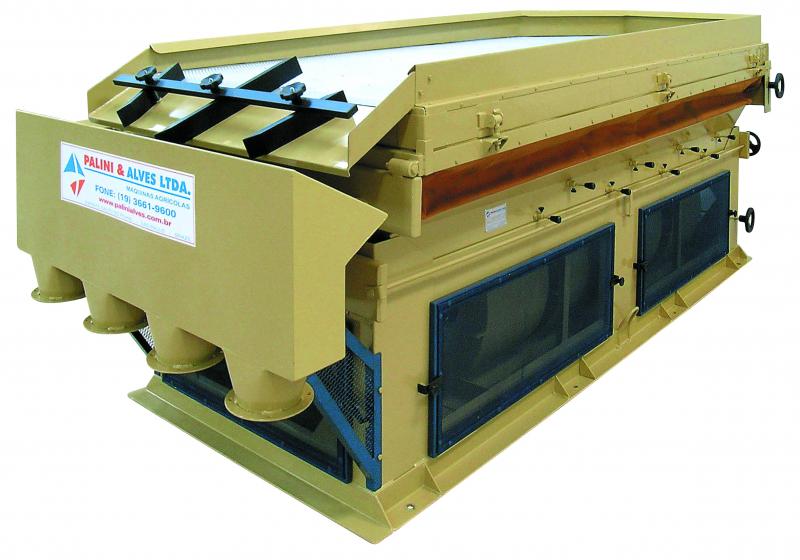

The PA-MSD Flutu-air densimetric separator table separates grains of the same size, but which have different densities, and therefore can not be separated by flat or cylindrical sieve classifiers.
The densimetric separator tables are essential in the preparation of a good batch of coffee eliminating slight defects and some defects by color, thus aiding in the work of the electronic pickers. They replace pneumatic pickers and separators with advantages such as: (1) turbine type fans that produce constant and uniform airflow at lower noise levels, (2) air and volume controllers that provide rapid adjustments and (3) product inlet with a device for connection to vacuum cleaner and light impurities, and (4) output of the product processed in up to four strips, which gives greater flexibility of operation to the product. processing line.

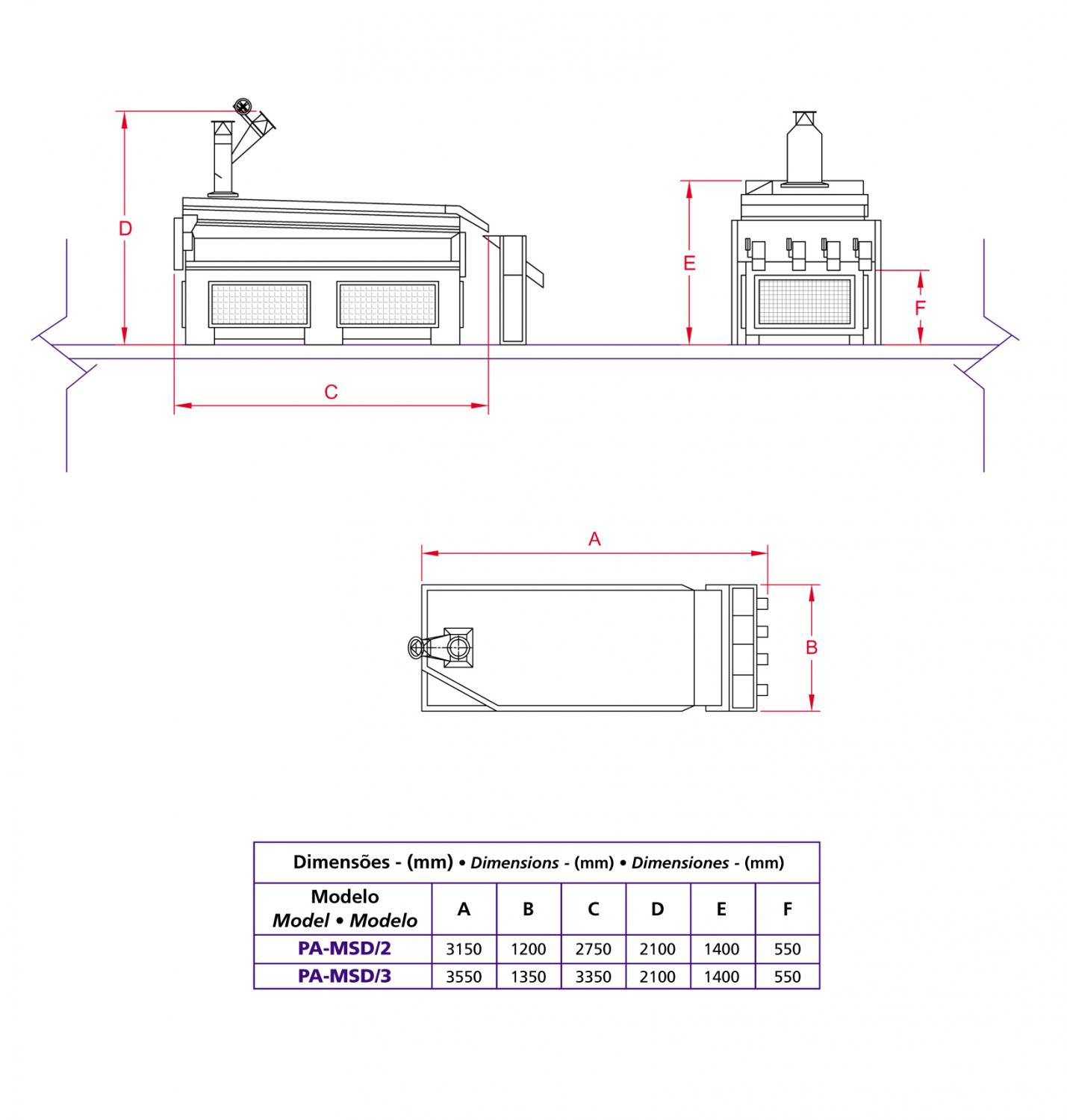

Technical Characteristics
Model: PA-MSD / 2
Capacity: 75 s / h - 4.5 t / hour
Electric Motor: 7.5 hp
Note: The capacities provided are based on product with a density of 700 kg / m3.
Download catalog (PDF)
Request a quote →
• Densimetric separation of coffee, soybeans, beans and other grains.
• Aspiration of light impurities at the product inlet.
• Turbine type fans improved performance.
• High output capacity.
• Simple adjustments of air direction and pressure.
