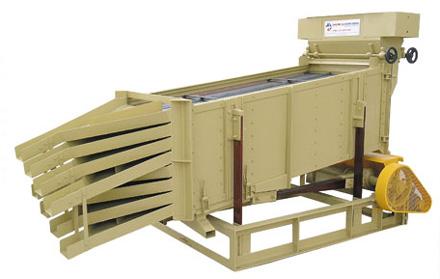

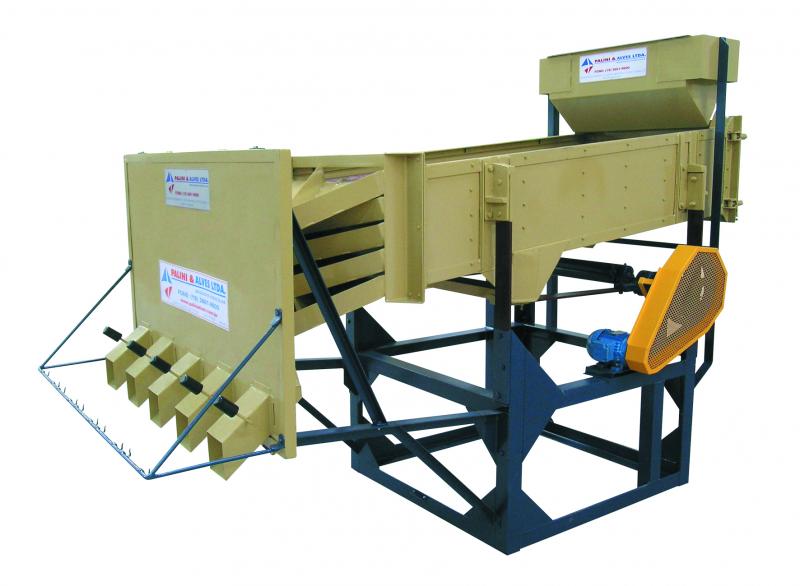

The PA-PORTO flat coffee grit sorter classifies coffee in up to 7 different sizes. They are simple operation machines, do not require adjustments, operate with high capacity and require little electrical energy.
The PA-PORTO classifiers have interchangeable sieves that allow separation of the product in the most varied sizes. It comes with a sorting box of 2.00m x 1.00m, the production capacity can be doubled or tripled if the required separation number is 2 or 3 respectively.
The grain size separation of coffee and other grains is necessary for the production of quality batches.
Technical Characteristics
Model: PA-PORTO / 2x1 (4P)
Capacity: 30 s / h - 1.8 t / hour
Electric Motor: 2.0 hp
Model: PA-PORTO / 2x1 (7P)
Capacity: 30 s / h - 1.8 t / hour
Electric Motor: 2.0 hp
Note: Capacity supplied is based on product with density equal to 700 kg / m3.
Download catalog (PDF)
Request a quote →
• Ideal for coffee, soybeans, beans and other grains.
• Separates coffee in up to 7 different sizes.
• Automatic cleaning of sieves by rubber balls.
• High capacity in low physical space.
• Easy exchange of sieves.
