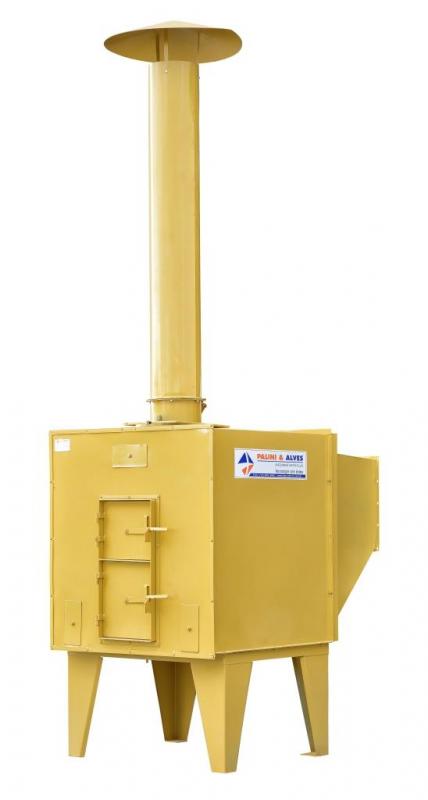

The PA-TFI/300 Indirect Fire Heat Exchange was developed based on new and current concepts of thermodynamics, referring to the transmission of heat, aiming at ecology and the environment, with better fuel burning and very high efficiency, reducing the emission of gases In the atmosphere.
A heat transmission system was employed, by means of special steel plates (resistant to high temperatures), with swelling joints of easy replacement; leaving aside the traditional tube system, which required great maintenance and provided low yields.

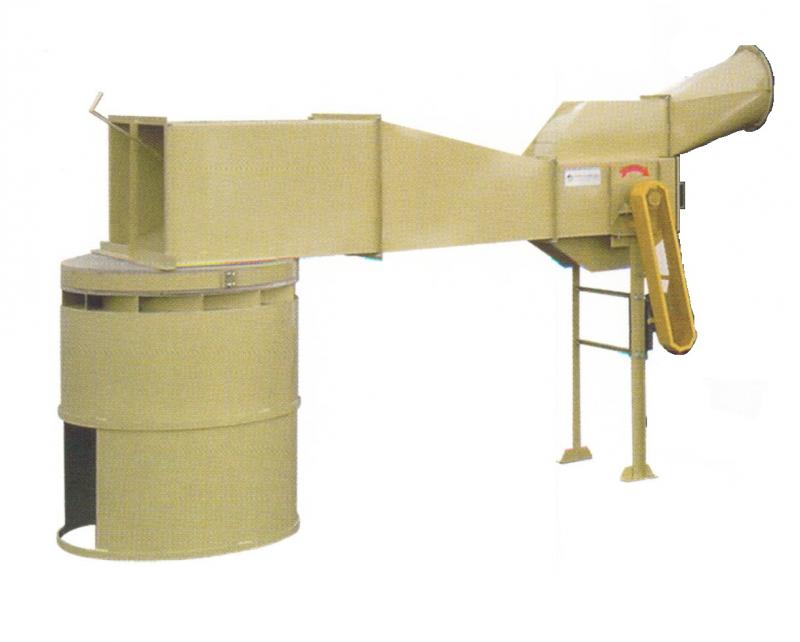

The PA-TFI/300 Indirect Fire Heat Exchange can be supplied with the following options: Cascade Straw Feeder or Straw Feeder with Endless Thread.
Technical Characteristics
Model: PA-TFI300/03/7.6 A 9.2
Average consumption: Firewood 0.8 m3/h, Straw 40 l/h, Oil 7 l/h, LPG 6 Kg/h
Capacity (max): 200,000 Kcal/h
Air temperature: 150ºC
Airflow (max): 75 m3/min
Application (max): Ideal for Dryers with capacity up to 9,200 liters
Download catalog (PDF)
Request a quote →
• Especially developed to produce high temperatures with the lowest consumption of fuel.
• To be coupled to any type of drier, tower or rotary type, continuous flow or batch type drier.
• Burns firewood, coffee husk or any other type of solid fuel.
• With door for connection of oil burners.
